LED Wall Pack Housing MLT-WPH-BM-II
LED wall pack housing fixture MLT-WPH-BM-II
Brief Introduction
This Ribbon-free LED wall pack housing fixture MLT-WPH-BM-II is the medium size wall-mounted housing which is originally designed for LED light engine with die-casting aluminum heat sink on the back. There is a smaller one named MLT-WPH-BS-II with the similar design in this series. With the latest LED lighting technology and protogenetic LED wall pack housing, the luminous flux output is much more, the efficacy is much higher and the heat dissipation is much better for a long time lifespan and less maintenance. Durable powder coating finish can withstand extreme climate changes without cracking, peeling or fading.
Feature
- Ribbon free design with heatsink inside.
- Durable aluminum die-casting housing for heavy-duty outdoor lighting applications.
- Plastic electrostatic spraying to resist corrosion, chipping and fading.
- High light transmittance heat and shock-resistant borosilicate glass prismatic diffuser.
- Silicon foam gaskets.
- Multiple knockouts for mounting convenience.
- 1/2″ conduit openings with plugs for conduit mounting.
- IP65 rated, protect from all dust and harsh weather.
- Standard bronze finish.
- Supports Semi Cut-off Mode
- Easy to assemble, install and maintain.

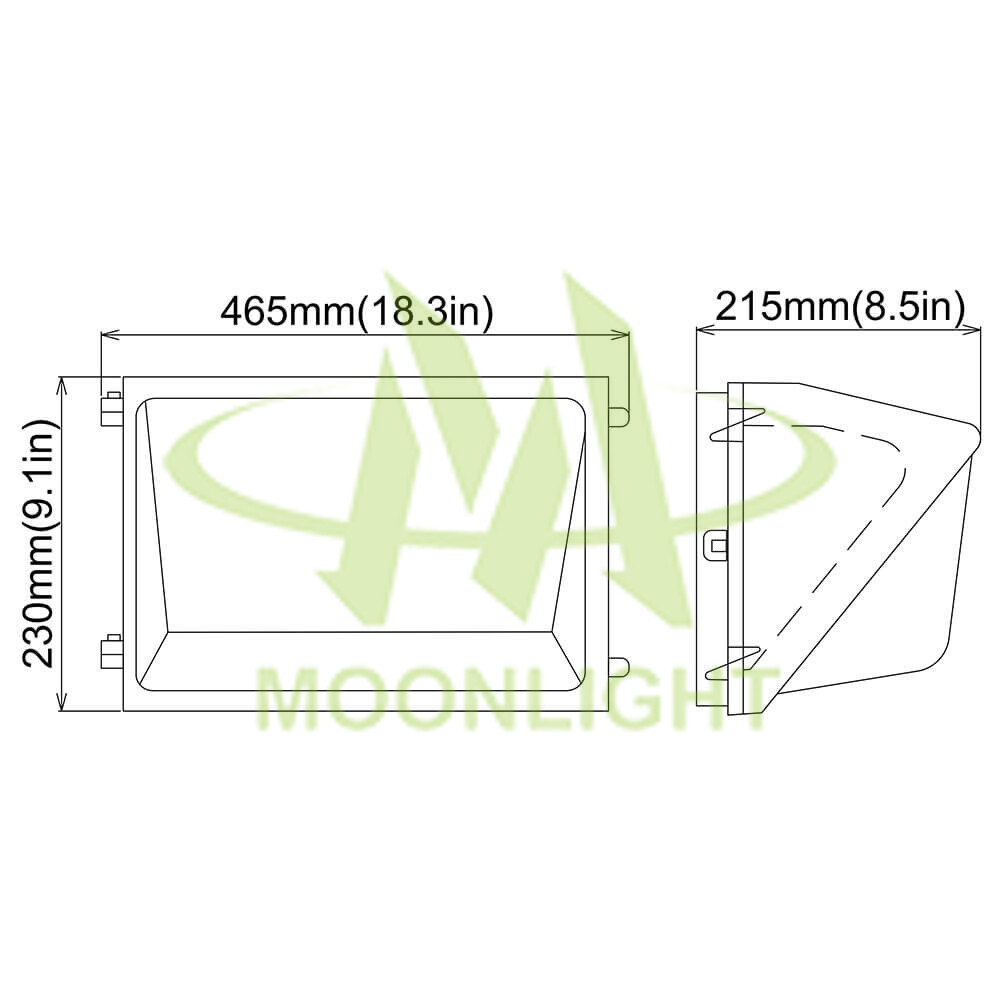

Mechanical Dimensions
Parameter
| Model No. | LED Wall Pack Housing MLT-WPH-BM-II |
| Dimension of Housing | 46cm(L)*23cm(W)*21.50cm(H) |
| Fixture Material | Die-casting Aluminum |
| Surface Finish Color | Bronze or Customized color |
| Material of Diffuser | Borosilicate Prismatic Glass |
| Mounting Type | Wall Mount |
| Aluminum Substrate Mounting Size | 340mm(L)*155mm(W) |
| Driver Box Dimension | 340mm(L)*115mm(W)*45mm(H) |
| Max Power | 90W-120W |
| IP Rating | IP65 |
Pictures
Packing Information
| Net Weight | 6.02kg/PCS |
| Gross weight | 6.64kg/Carton |
| Quantity | 1PCS/ carton |
| Carton Size | 50cm(L)*29cm(W)*29..5cm(H) |
Application
The ribbon-free LED wall pack housing from Moonlight is ideal for wall-mounted doorway and pathway LED wall pack lighting fixture in a variety of lighting applications. LED wall pack are typically applied as wall-mounted security lighting, commercial lighting that are installed on the sides of buildings, warehouse, parking garages, building walkways, pedestrian walkways, and other places around commercial buildings.
