Aluminum Street Light Body MLT-SLH-LL-II
Brief Introduction
The MLT-SLH-LL-II LED aluminum street light body is a large-sized option within the SMD LED street light housing lineup from Moonlight’s L series. Featuring a contemporary design, this fixture is precision die-cast molded and finished with a superior corrosion-resistant coating, ensuring durability and longevity. Equipped with a standard twist-lock photocell mounting platform, the MLT-SLH-LL-II is versatile and suitable for a wide range of LED roadway lighting applications. Its combination of modern aesthetics and robust construction makes it an ideal choice for enhancing visibility and safety in various environments.
Feature
Durable Construction: Robust aluminum alloy die-cast street light body designed for heavy-duty outdoor lighting applications.
Sleek Design: Ribbon-free and compact for a modern look.
Thermal Management: Optimized Structure Through Advanced FEA Technology

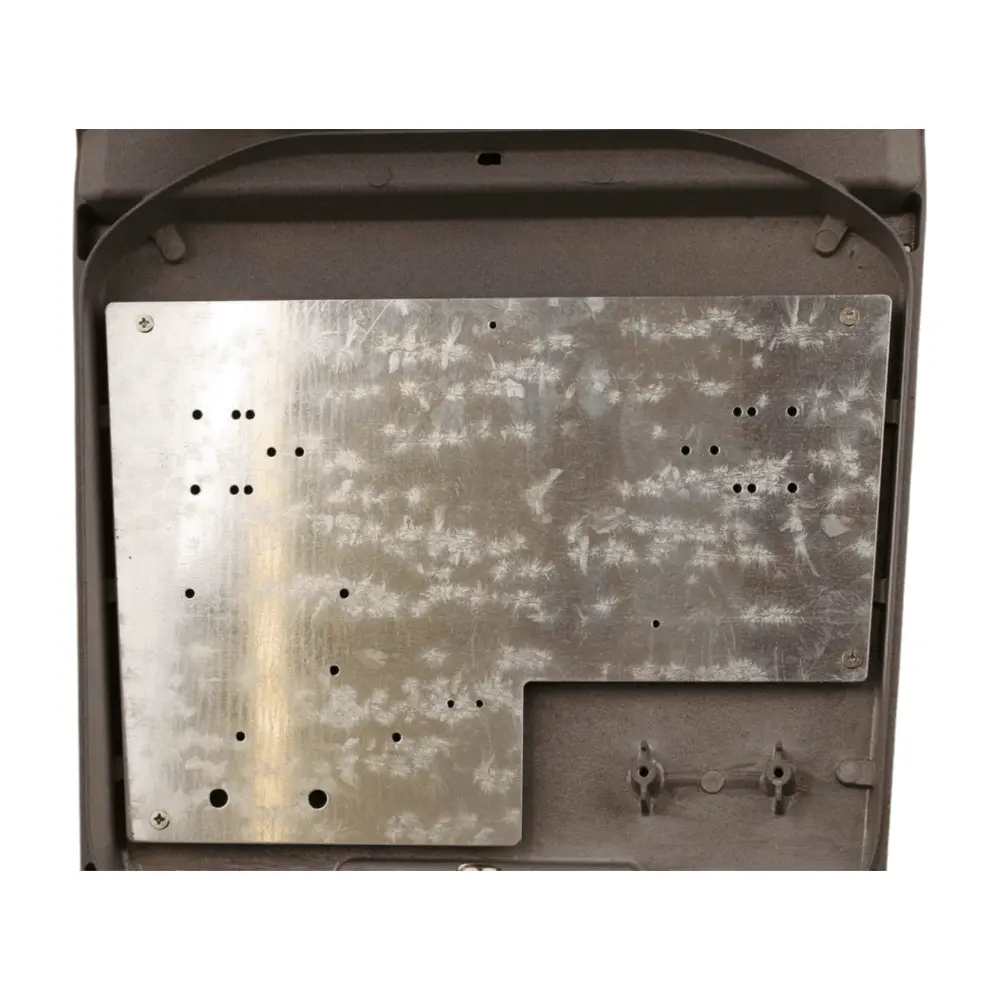

Easy Maintenance: Features a separate LED light engine and driver box for quick, tool-less driver replacement.
Safety Features: GND bosses located at the bottom of the driver box for enhanced security.
Corrosion Resistance: Finished with plastic electrostatic spraying to prevent corrosion, chipping, and fading.

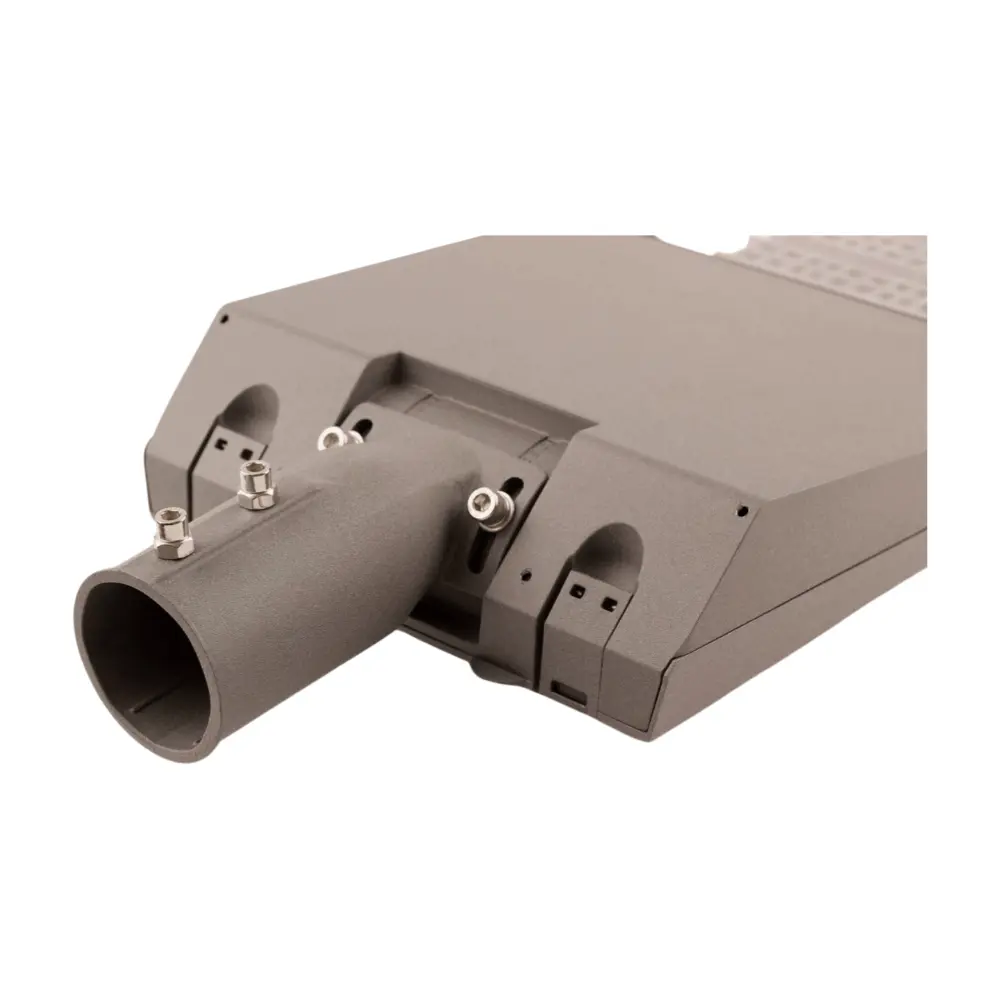

Flexible Mounting: Adjustable knuckle slip fitter with SUS304 stainless steel hardware ensures secure attachment to the pole arm.
Versatile Installation: Supports side-entry or post-top mounting with universal pieces for precise on-site adjustments.
High-Quality Optics: Equipped with a 4mm high-transmittance tempered glass diffuser for optimal light distribution.
Durable Components: Features silicon gaskets and SUS304 stainless steel bolts and clips for secure fastening.
Brand LED Driver: Compatible with Mean Well LED Driver XLG-200 series.
Advanced Control: Includes a standard S6000 socket and twist-lock photocell mounting platform for lighting control.
Enhanced Safety: Quick-disconnect terminal block platform allows secure disconnection of power for maintenance personnel.
Weather Resistant: IP65-rated, offering full protection from dust and harsh weather conditions.
Finishing Touch: Standard gray finish for a clean, professional appearance.
Ease of Use: Designed for easy assembly, installation, and maintenance, ensuring a lineman-friendly experience.
Aluminum Street Light MLT-SLH-LL-II Mechanical Dimensions
Parameter
Model No. | Aluminum Street Light Body MLT-SLH-LL-II |
Dimension of Housing | 71.6cm(L)*30.5cm(W)*10.4cm(H) |
Fixture Material | Die-casting Aluminum Alloy |
Die-casting Aluminum Alloy Weight | 3500g |
Surface Finish Color | Gray or Customized color |
Material of Diffuser | 4mm High Transmittance Tempered glass |
Effective MCPCB Mounting Size | 200mm(L)*200mm(W) |
Compatible Lenses | 9PCS 50mm*50mm Lenses |
Recommended LED Power | 150W to 200W |
Driver Box Dimension | 258mm(L)*152mm(W)*42mm(H) |
Pole Mounting | Accommodates up to Φ60mm pipe |
Adjustable Slip Fitter | -15°to +15° |
Standard Photocell | Optional |
Quick Disconnection Terminal Block | Optional |
IP Rating | IP65 |
Thermal Management
The structure of this aluminum street light body is optimized using advanced Finite Element Analysis (FEA) technology. By strategically dividing cold and hot zones, we enhance the longevity of the LED driver.
Exploded View
You can see what we can provide via the following exploded view of the aluminum street light body, but please be noted some parts like driver, LED Light engine, quick disconnector, SPD are optional.
Aluminum Street Light Body MLT-SLH-LL-II Pictures
Packing Information
Net Weight | 4.80kg/PCS |
Gross weight | 5.70kg/carton |
Quantity | 1PCS/ carton |
Carton Size | 77cm(L)*35cm(W)*14cm(H) |
Application
This robust and modern LED aluminum street light body MLT-SLH-LL-II is designed to accommodate 150W-200W LED lamps, making it an ideal choice for high-performance street lighting. Engineered for durability and cost-efficiency, this fixture is versatile and suitable for a wide range of applications. It excels in illuminating urban streets, small town main streets, residential neighborhoods, commercial districts, public squares, industrial parks, interstate highway interchanges, bridges, and rural intersections. Its sleek design ensures both aesthetic appeal and functional excellence in various lighting environments.
