Housing for LED Street Light MLT-SLH-LS-II
Housing for LED Street Light MLT-SLH-LS-II
Brief Introduction
The housing for LED street light MLT-SLH-LS-II is the compact version of the SMD LED street light housing from the Moonlight L series. Featuring a sleek, modern design, it is precision die-cast and finished with a superior corrosion-resistant coating. This durable housing also includes a standard twist-lock photocell mounting platform, making it ideal for a wide range of LED roadway lighting applications.
Feature
- Durable Construction: Robust aluminum alloy die-cast housing designed for heavy-duty outdoor lighting applications.
- Sleek Design: Ribbon-free and compact for a modern look.
- Thermal Management: Optimized Structure Through Advanced FEA Technology

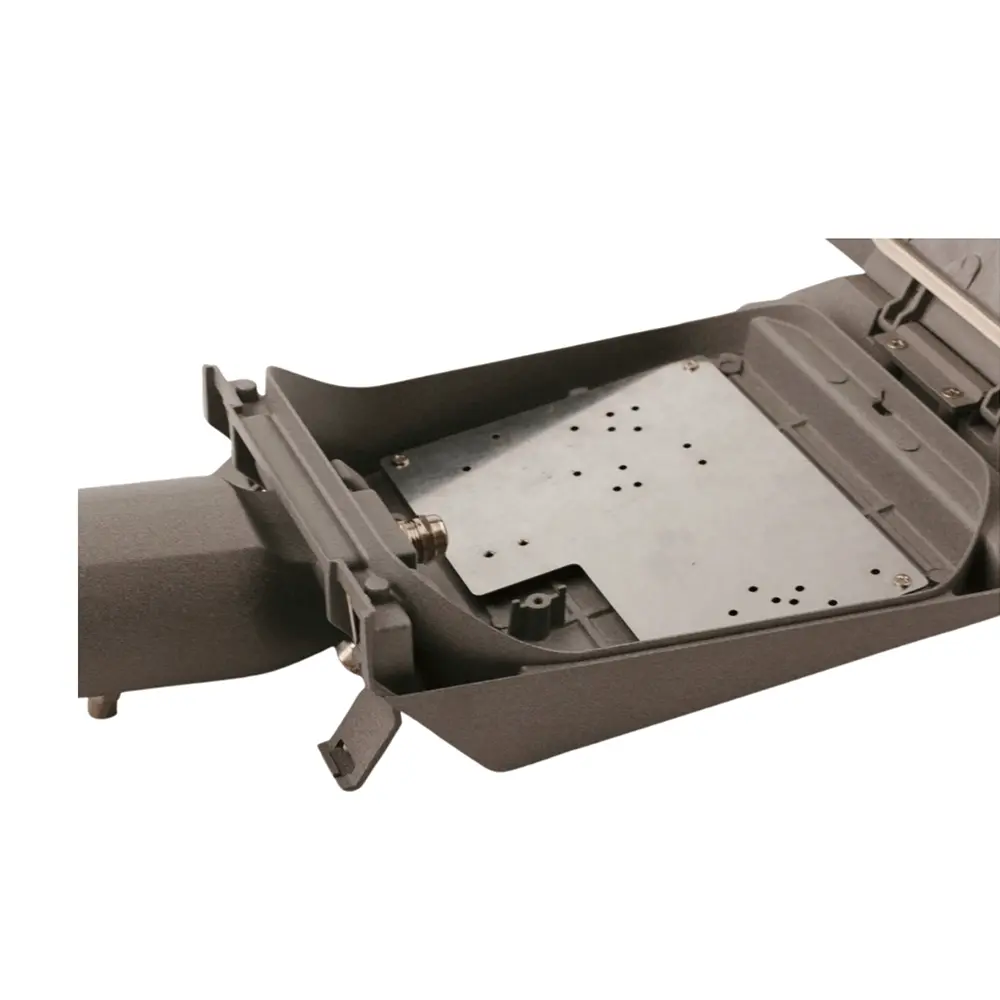

- Easy Maintenance: Features a separate LED light engine and driver box for quick, tool-less driver replacement.
- Safety Features: GND bosses located at the bottom of the driver box for enhanced security.
- Corrosion Resistance: Finished with plastic electrostatic spraying to prevent corrosion, chipping, and fading.

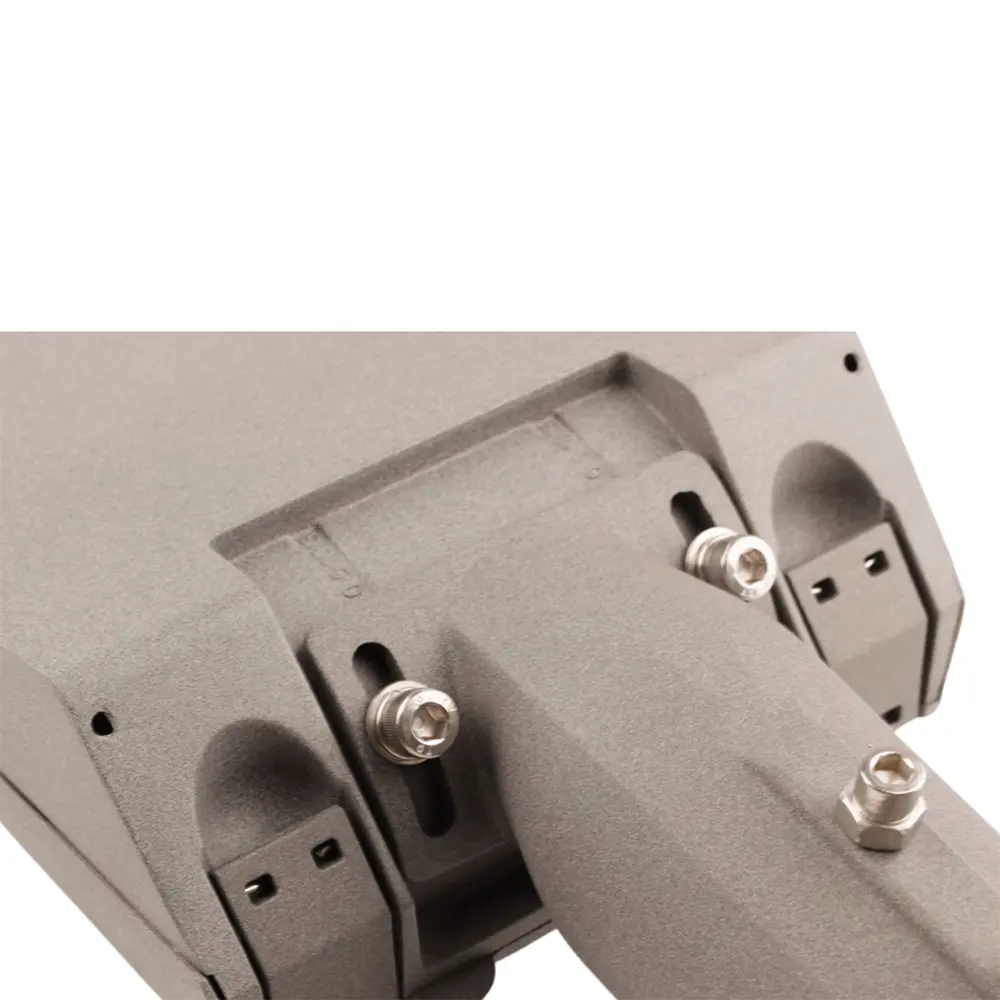

- Flexible Mounting: Adjustable knuckle slip fitter with SUS304 stainless steel hardware ensures secure attachment to the pole arm.
- Versatile Installation: Supports side-entry or post-top mounting with universal pieces for precise on-site adjustments.
- High-Quality Optics: Equipped with a 4mm high-transmittance tempered glass diffuser for optimal light distribution.
- Durable Components: Features silicon gaskets and SUS304 stainless steel bolts and clips for secure fastening.
- Brand LED Driver: Compatible with Mean Well LED Driver XLG-75 series.
- Advanced Control: Includes a standard S6000 socket and twist-lock photocell mounting platform for lighting control.
- Enhanced Safety: Quick-disconnect terminal block platform allows secure disconnection of power for maintenance personnel.
- Weather Resistant: IP65-rated, offering full protection from dust and harsh weather conditions.
- Finishing Touch: Standard gray finish for a clean, professional appearance.
- Ease of Use: Designed for easy assembly, installation, and maintenance, ensuring a lineman-friendly experience.
Housing for LED Street Light MLT-SLH-LS-II Mechanical Dimensions
Parameter
| Model No. | Housing for LED Street Light MLT-SLH-LS-II |
| Dimension of Housing | 58.6cm(L)*21.6cm(W)*9.8cm(H) |
| Fixture Material | Die-casting Aluminum Alloy |
| Die-casting Aluminum Alloy Weight | 2000g |
| Surface Finish Color | Gray or Customized color |
| Material of Diffuser | 4mm High Transmittance Tempered glass |
| Effective MCPCB Mounting Size | 150mm(L)*100mm(W) |
| Compatible Lenses | 6PCS 50mm*50mm Lenses |
| Recommended LED Power | 30W to 80W |
| Driver Box Dimension | 148mm(L)*113mm(W)*37mm(H) |
| Pole Mounting | Accommodates up to Φ60mm pipe |
| Adjustable Slip Fitter | -15°to +15° |
| Standard Photocell | Optional |
| Quick Disconnection Terminal Block | Optional |
| IP Rating | IP65 |
Thermal Management
The structure is optimized using advanced Finite Element Analysis (FEA) technology. By strategically dividing cold and hot zones, we enhance the longevity of the LED driver.
Exploded View
You can see what we can provide via the following exploded view of this LED street light body, but please be noted some parts like driver, Light engine, quick disconnector, SPD are optional.

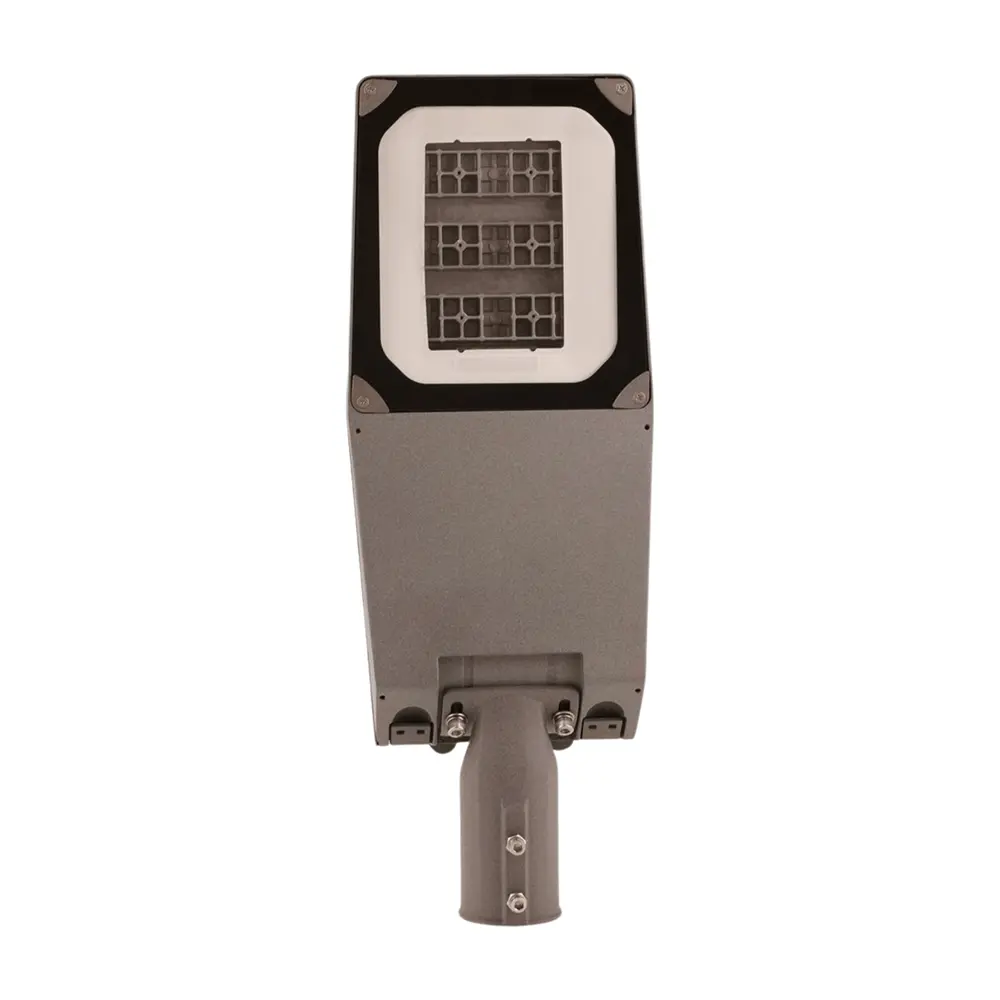

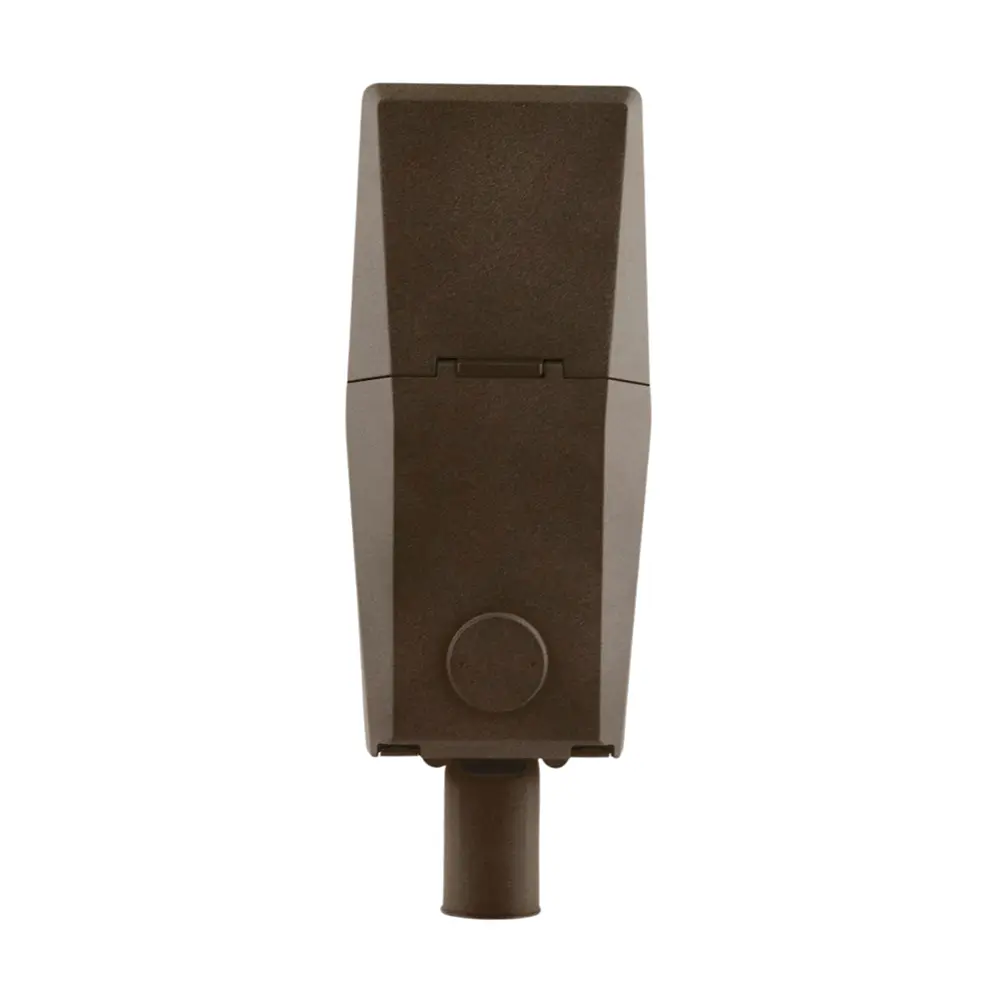

Housing for LED Street Light MLT-SLH-LS-II Pictures
Packing Information
| Net Weight | 2.70kg/PCS |
| Gross weight | 3.10kg/carton |
| Quantity | 1PCS/ carton |
| Carton Size | 63cm(L)*26cm(W)*14cm(H) |
Application
This heavy-duty, modern, and cost-effective housing for LED street light is designed for 30W-80W LED street lighting fixtures. Ideal for a wide range of applications, LED street lighting is extensively used in urban settings, small-town main streets, residential neighborhoods, commercial districts, public squares, industrial parks, interstate highway interchanges, bridges, and rural intersections.
