LED Street Light Body MLT-SLH-LM-II
Housing for LED Street Light MLT-SLH-LM-II
Brief Introduction
- The MLT-SLH-LM-II LED street light body represents a medium-sized solution within Moonlight’s L series of SMD LED street light casings. Boasting a sleek, modern design, this LED street light housing is crafted through precision die-casting and features a superior corrosion-resistant coating for enhanced durability. Equipped with a standard twist-lock photocell mounting platform, the MLT-SLH-LM-II is highly versatile, making it suitable for a wide range of LED roadway lighting applications. Its combination of contemporary aesthetics and robust construction ensures optimal performance in various lighting environments. This version enhances professionalism while maintaining clarity and detail.
Feature
- Durable Construction: Robust aluminum alloy die-cast aluminum street light body designed for heavy-duty outdoor lighting applications.
- Sleek Design: Ribbon-free and compact for a modern look.
- Thermal Management: Optimized Structure Through Advanced FEA Technology

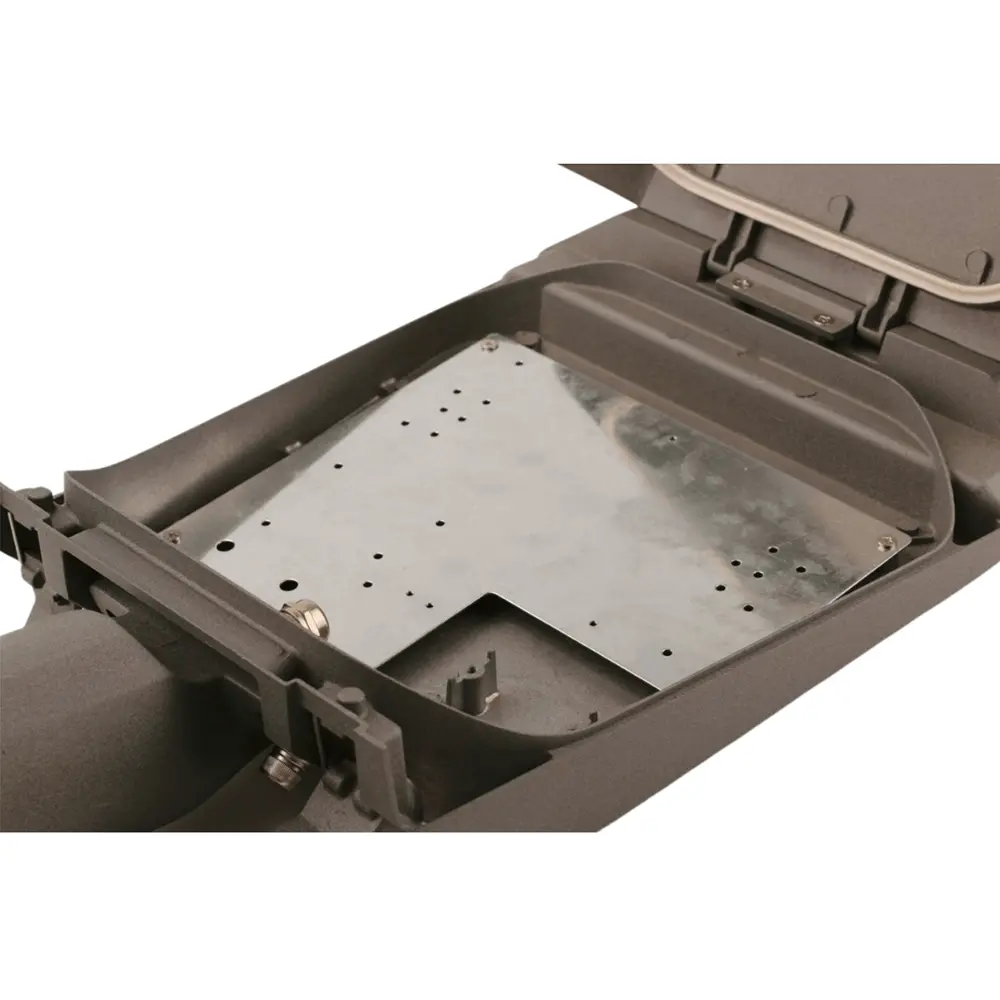

- Easy Maintenance: Features a separate LED light engine and driver box for quick, tool-less driver replacement.
- Safety Features: GND bosses located at the bottom of the driver box for enhanced security.
- Corrosion Resistance: Finished with plastic electrostatic spraying to prevent corrosion, chipping, and fading.

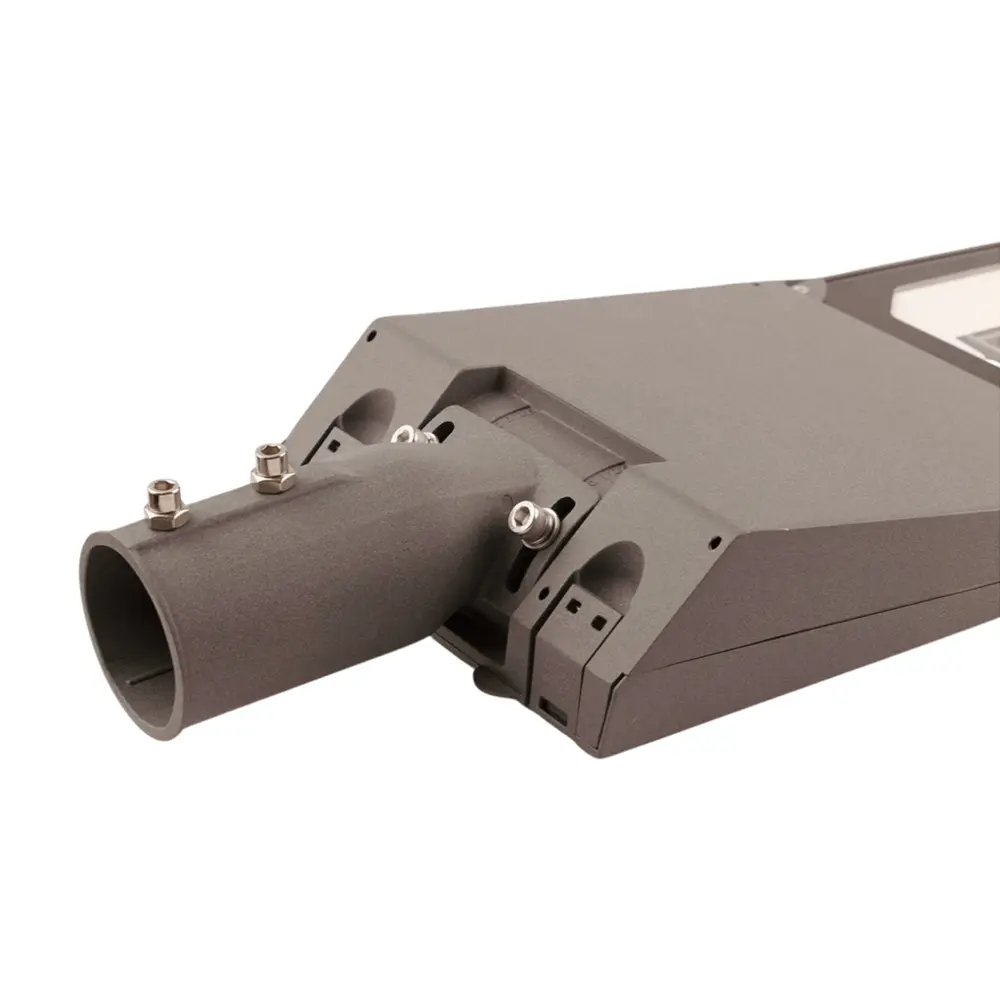

- Flexible Mounting: Adjustable knuckle slip fitter with SUS304 stainless steel hardware ensures secure attachment to the pole arm.
- Versatile Installation: Supports side-entry or post-top mounting with universal pieces for precise on-site adjustments.

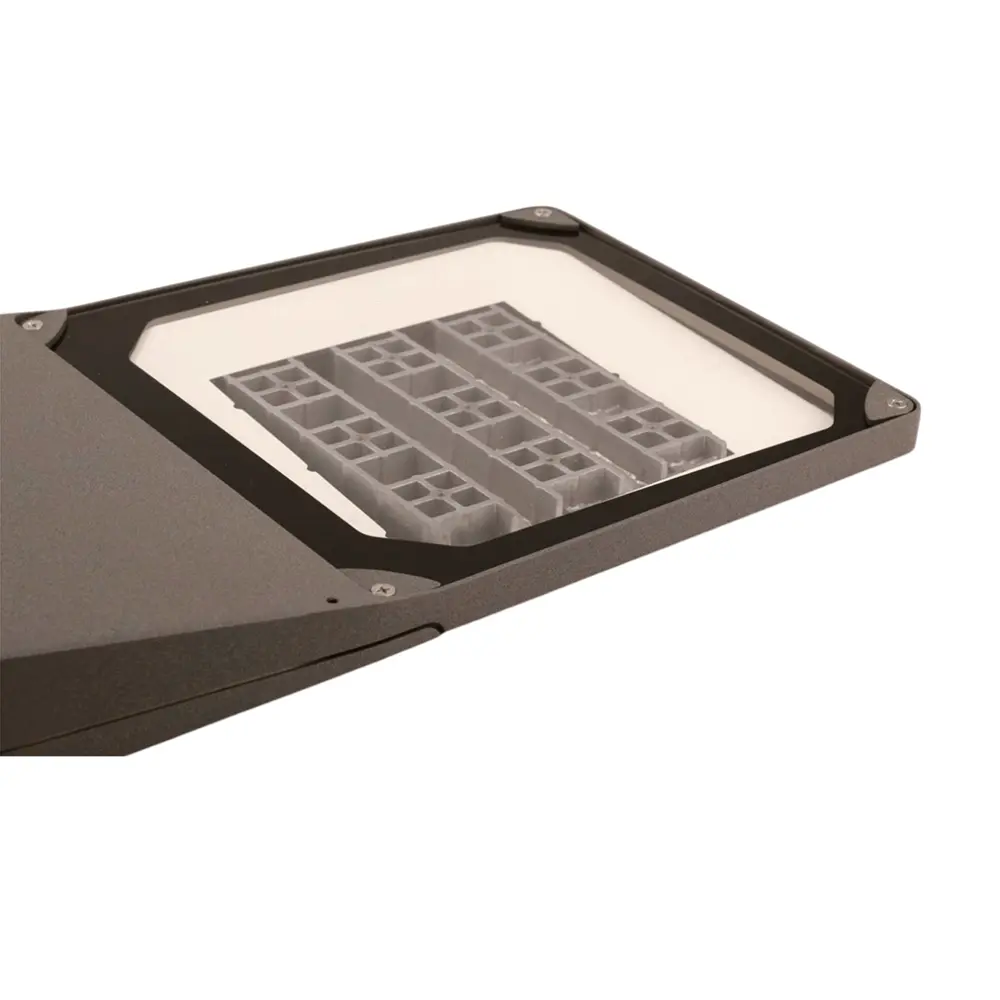

- High-Quality Optics: Equipped with a 4mm high-transmittance tempered glass diffuser for optimal light distribution.

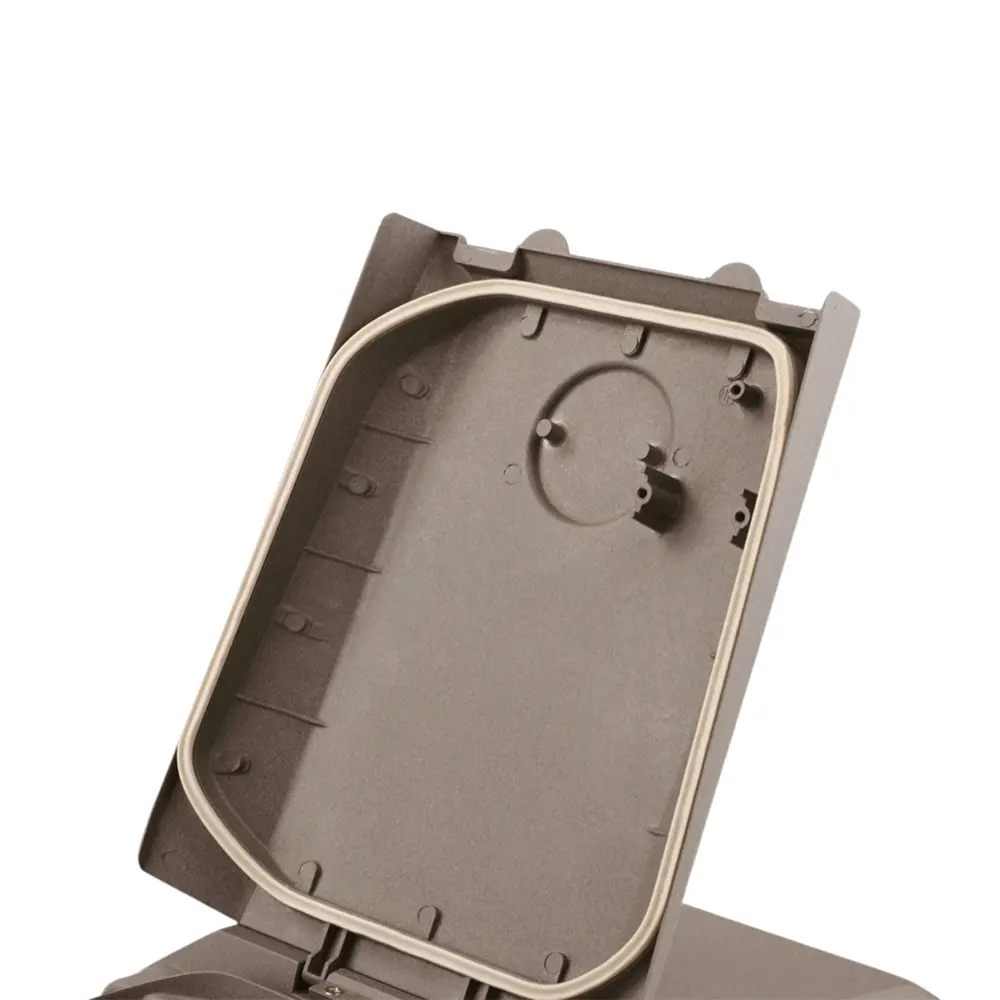

- Durable Components: Features silicon gaskets and SUS304 stainless steel bolts and clips for secure fastening.
- Brand LED Driver: Compatible with Mean Well LED Driver XLG-100 series.
- Advanced Control: Includes a standard S6000 socket and twist-lock photocell mounting platform for lighting control.
- Enhanced Safety: Quick-disconnect terminal block platform allows secure disconnection of power for maintenance personnel.
- Weather Resistant: IP65-rated, offering full protection from dust and harsh weather conditions.
- Finishing Touch: Standard gray finish for a clean, professional appearance.
- Ease of Use: Designed for easy assembly, installation, and maintenance, ensuring a lineman-friendly experience.
Housing for LED Street Light MLT-SLH-LM-II Mechanical Dimensions
Parameter
| Model No. | LED Street Light Body MLT-SLH-LM-II |
| Dimension of Housing | 64.6cm(L)*25.5cm(W)*10.0cm(H) |
| Fixture Material | Die-casting Aluminum Alloy |
| Die-casting Aluminum Alloy Weight | 2500g |
| Surface Finish Color | Gray or Customized color |
| Material of Diffuser | 4mm High Transmittance Tempered glass |
| Effective MCPCB Mounting Size | 150mm(L)*150mm(W) |
| Compatible Lenses | 9PCS 50mm*50mm Lenses |
| Recommended LED Power | 100W to 120W |
| Driver Box Dimension | 215mm(L)*136mm(W)*36mm(H) |
| Pole Mounting | Accommodates up to Φ60mm pipe |
| Adjustable Slip Fitter | -15°to +15° |
| Standard Photocell | Optional |
| Quick Disconnection Terminal Block | Optional |
| IP Rating | IP65 |

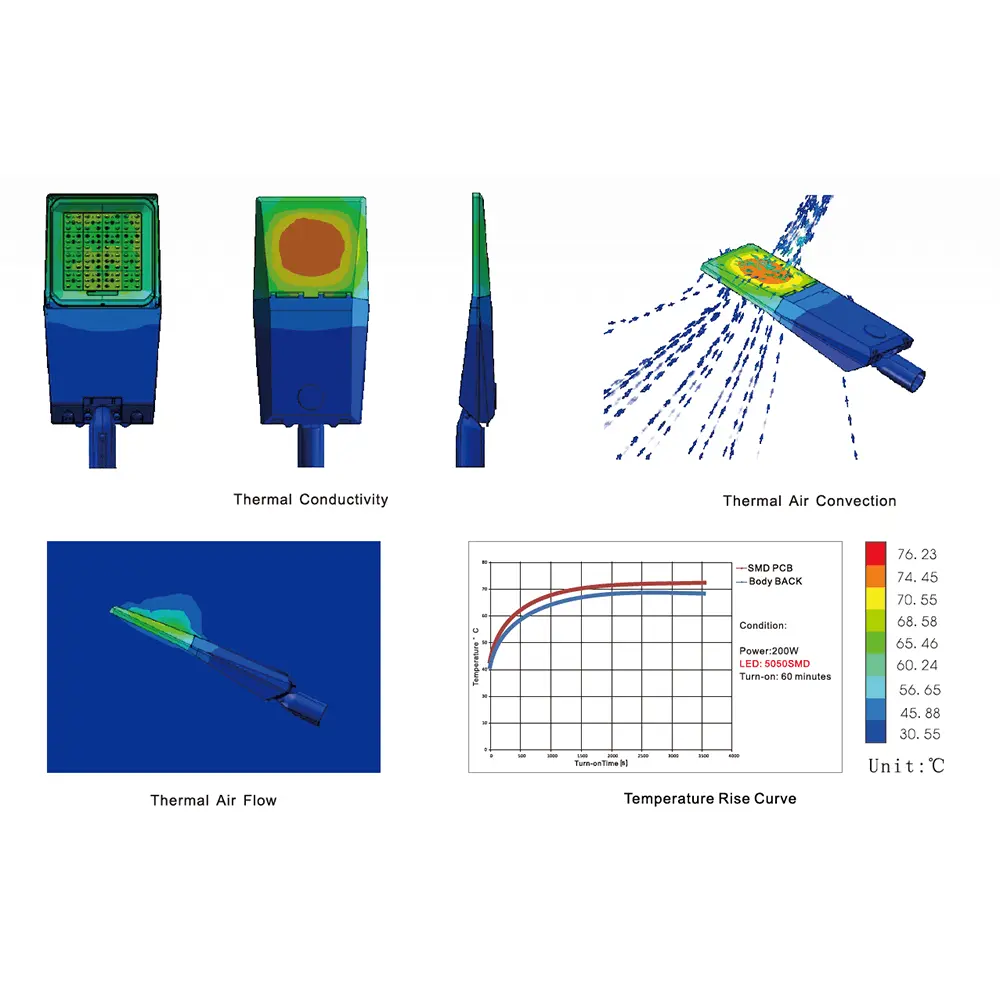

Thermal Management
The structure of this LED street light body is optimized using advanced Finite Element Analysis (FEA) technology. By strategically dividing cold and hot zones, we enhance the longevity of the LED driver.

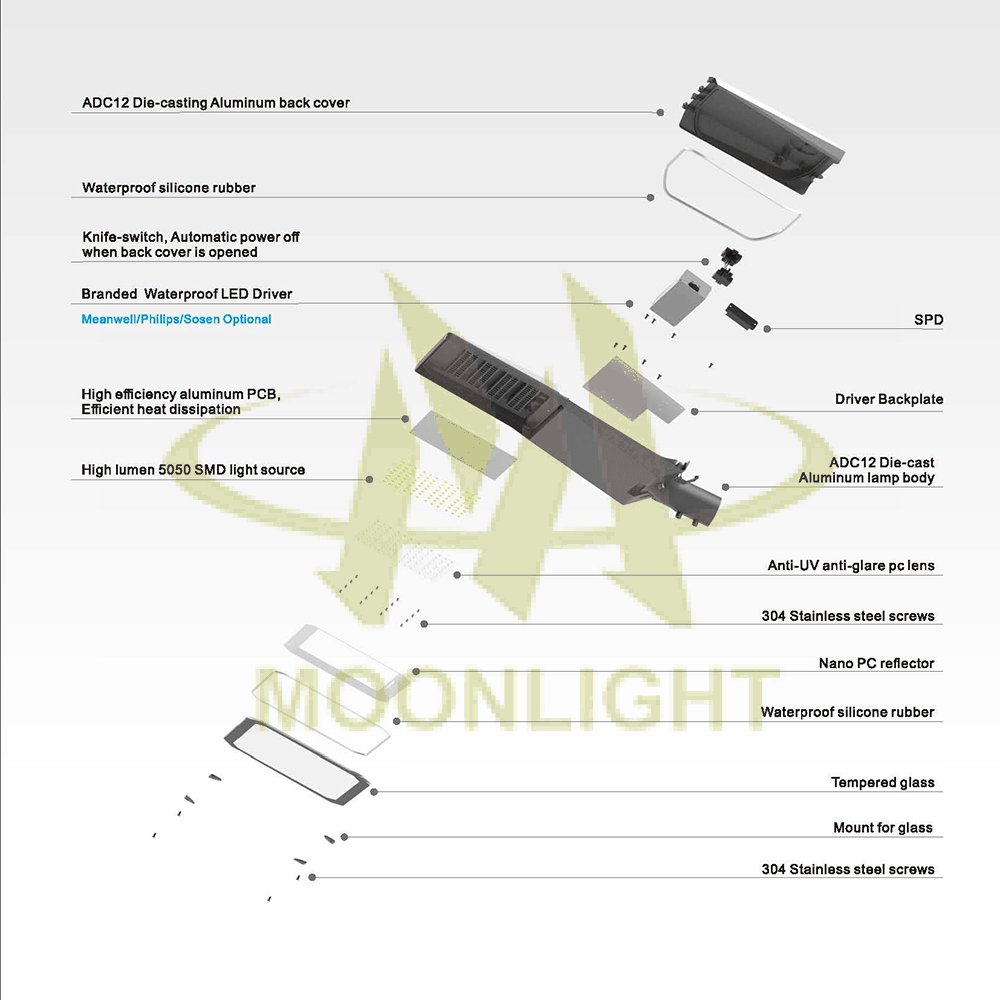

Exploded View
You can see what we can provide via the following exploded view of this LED street light body, but please be noted some parts like driver, LED Light engine, quick disconnector, SPD are optional.

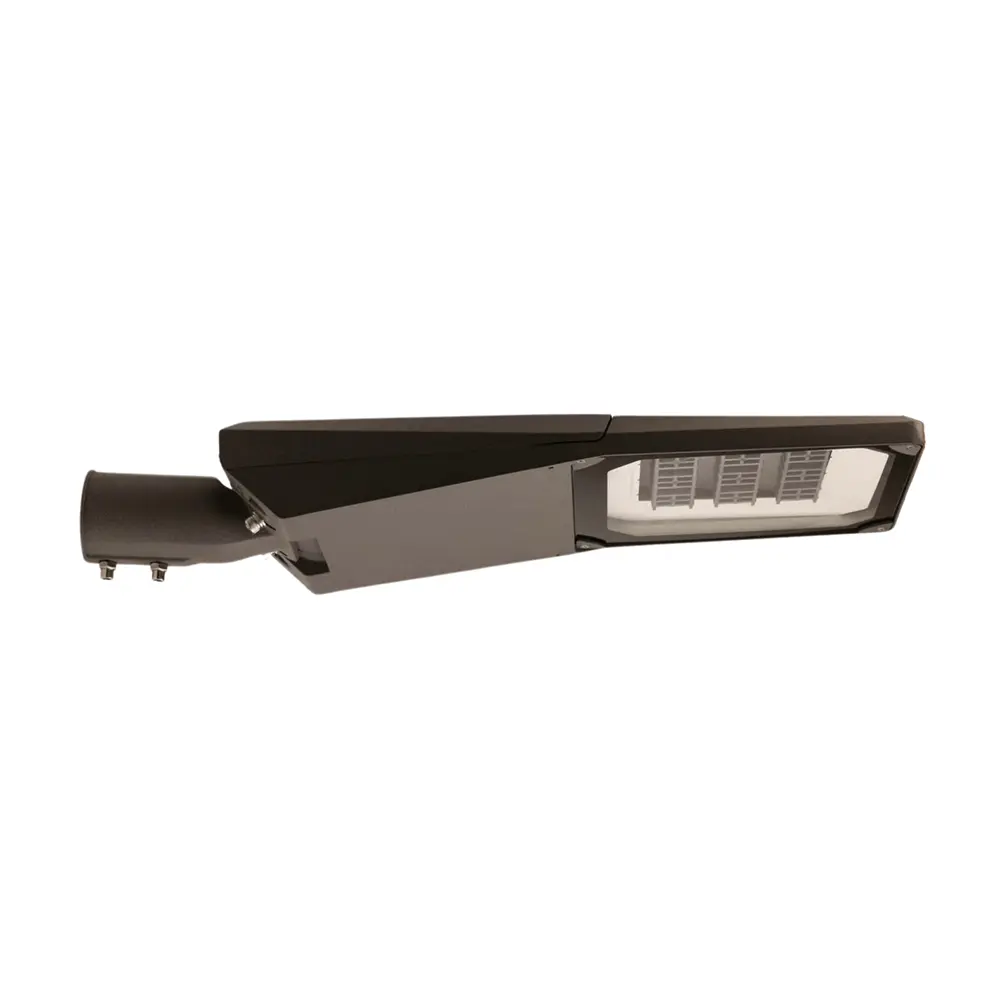

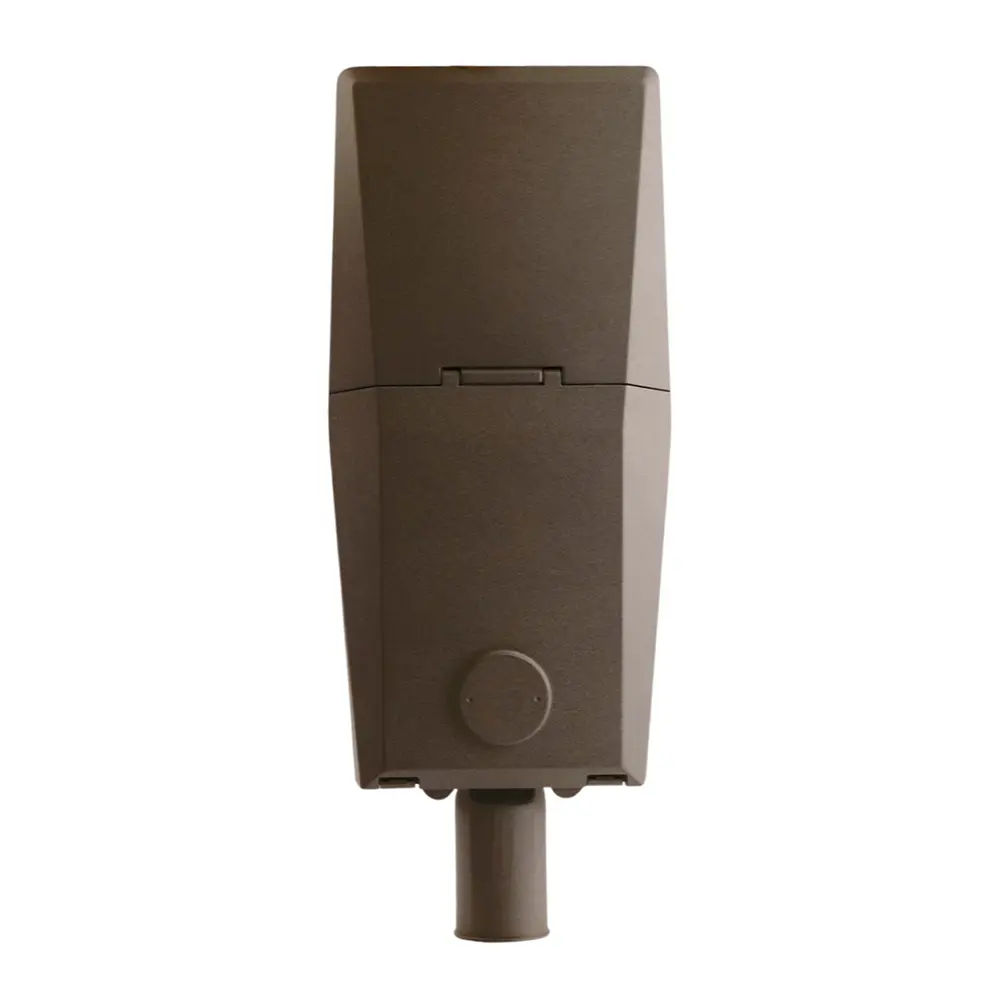

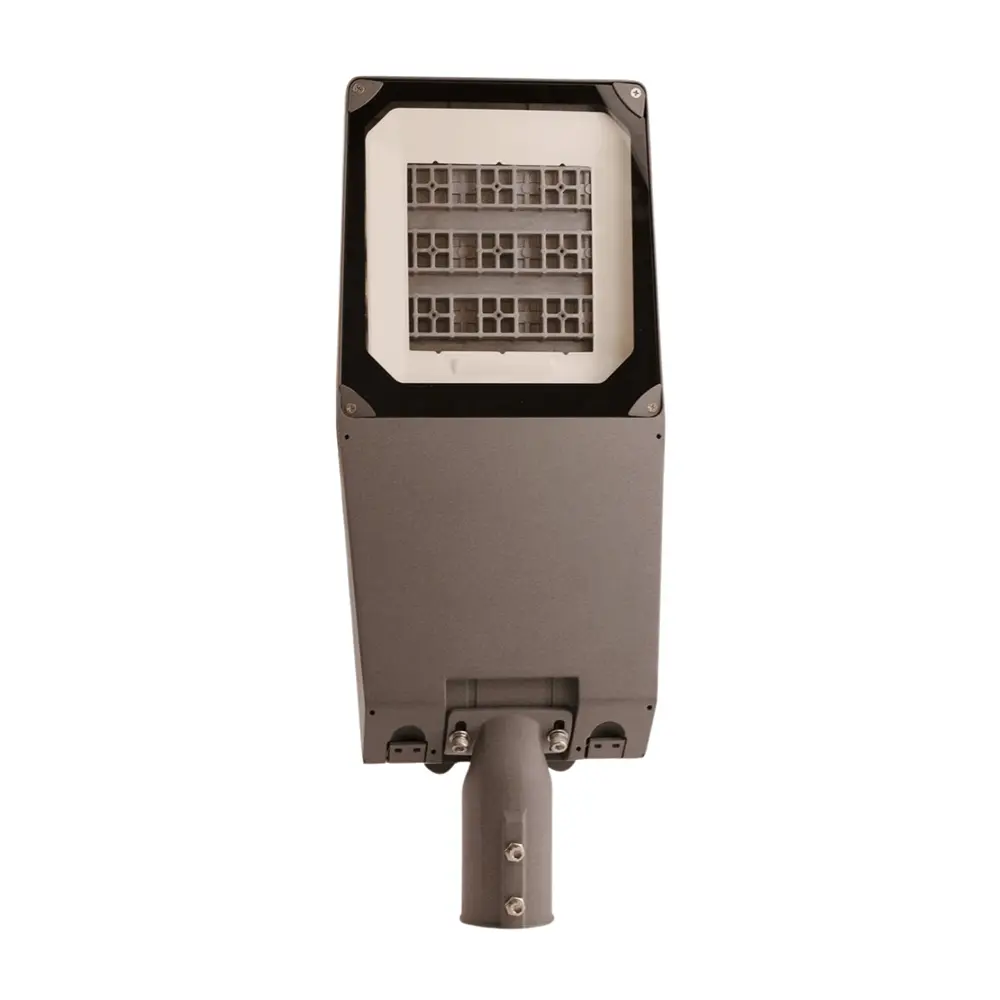

Housing for LED Street Light MLT-SLH-LM-II Pictures
Packing Information
| Net Weight | 3.40kg/PCS |
| Gross weight | 4.10kg/carton |
| Quantity | 1PCS/ carton |
| Carton Size | 69cm(L)*30cm(W)*14cm(H) |
Application
This heavy-duty LED street light body features a modern design and is a cost-effective solution typically utilized for 100W-120W LED street lighting applications. LED street lighting is widely adopted in urban environments, illuminating small-town downtown areas, residential neighborhoods, commercial districts, public squares, industrial parks, interstate highway interchanges, bridges, and rural intersections. Its versatility and efficiency make it an ideal choice for enhancing visibility and safety across various settings. This revision maintains the original meaning while enhancing professionalism and clarity.
